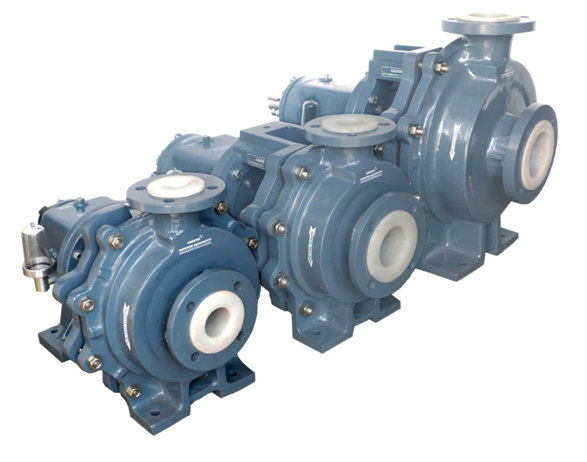

Non - Metallic Pumps - Polymer Moulded Pump with Amour

MOC :

  • KYNAR PVDF Moulded Pumps With Metal Armour
  • FEP Moulded Pumps With Metal Armour
  • PFA Moulded Pumps With Metal Armour
  • PPH Moulded Pumps With Metal Armour

These pumps are designed for handling of most serval industrials duties & available in variety of lining materials to suit different requirements involving highly aggressive media at elevated temperature.The wetted parts of the pumps are lined with following Polymers.

  • Kynar PVDF (Polyvinyldene fluoride)
  • FEP (Fluorinated ethylene propylene)
  • PFA (Perfluoroalkoxy)
  • PPH (Polypropelene Homo-Polymer)

Application : Permits applications with all aggressive ,corrosive or toxic media up to 200°C with or without abrasive slurries.
Max Head : Up To 120 MWC Capacity : UP TO 500 M3/HR


CMPV :- KYNAR PVDF MOULDED PUMP WITH METAL ARMOUR

CMPV SERIES : 1.375’’
PUMP MODEL SUCTION DELEVERY IMPELLER
CMPV 20 25 25 125
CMPV 30 40 25 205
CMPV 35 50 40 260
CMPV 40 50 40 160
CMPV 45 50 40 195
CMPV 50 80 50 160

CMPV SERIES : 1.875’’
PUMP MODEL SUCTION DELEVERY IMPELLER
CMPV 55 50 40 315
CMPV 60 80 50 200
CMPV 70 80 50 265
CMPV 80 100 80 200
CMPV 85 100 80 320
CMPV 90 100 80 275

CMPV SERIES : 2.125’’ & 2.5’’
PUMP MODEL SUCTION DELEVERY IMPELLER
CMPV 95 100 80 350
CMPV 100 150 100 290
CMPV 120 150 125 280
CMPV 150 150 125 350

CMPH :- PPH MOULDED PUMP WITH METAL ARMOUR

CMPH SERIES : 1.375’’
PUMP MODEL SUCTION DELEVERY IMPELLER
CMPH 20 25 25 125
CMPH 30 40 25 205
CMPH 35 50 40 260
CMPH 40 50 40 160
CMPH 45 50 40 195
CMPH 50 80 50 160

CMPH SERIES : 1.875’’
PUMP MODEL SUCTION DELEVERY IMPELLER
CMPH 55 50 40 315
CMPH 60 80 50 200
CMPH 70 80 50 265
CMPH 80 100 80 200
CMPH 85 100 80 320
CMPH 90 100 80 275

CMPH SERIES : 2.125’’ & 2.5’’
PUMP MODEL SUCTION DELEVERY IMPELLER
CMPH 95 100 80 350
CMPH 100 150 100 290
CMPH 120 150 125 280
CMPH 150 150 125 350

CMFE :- FEP MOULDED PUMP WITH METAL ARMOUR

CMFE SERIES : 1.375’’
PUMP MODEL SUCTION DELEVERY IMPELLER
CMFE 20 25 25 125
CMFE 30 40 25 205
CMFE 35 50 40 260
CMFE 40 50 40 160
CMFE 45 50 40 195
CMFE 50 80 50 160

CMFE SERIES : 1.875’’
PUMP MODEL SUCTION DELEVERY IMPELLER
CMFE 55 50 40 315
CMFE 60 80 50 200
CMFE 70 80 50 265
CMFE 80 100 80 200
CMFE 85 100 80 320
CMFE 90 100 80 275

CMFE SERIES : 2.125’’ & 2.5’’
PUMP MODEL SUCTION DELEVERY IMPELLER
CMFE 95 100 80 350
CMFE 100 150 100 290
CMFE 120 150 125 280
CMFE 150 150 125 350

CMFE :- PFA MOULDED PUMP WITH METAL ARMOUR

CMFE SERIES : 1.375’’
PUMP MODEL SUCTION DELEVERY IMPELLER
CMFE 20 25 25 125
CMFE 30 40 25 205
CMFE 35 50 40 260
CMFE 40 50 40 160
CMFE 45 50 40 195
CMFE 50 80 50 160

CMPF SERIES : 1.875’’
PUMP MODEL SUCTION DELEVERY IMPELLER
CMPF 55 50 40 315
CMPF 60 80 50 200
CMPF 70 80 50 265
CMPF 80 100 80 200
CMPF 85 100 80 320
CMPF 90 100 80 275

CMPF SERIES : 2.125’’ & 2.5’’
PUMP MODEL SUCTION DELEVERY IMPELLER
CMPF 95 100 80 350
CMPF 100 150 100 290
CMPF 120 150 125 280
CMPF 150 150 125 350
