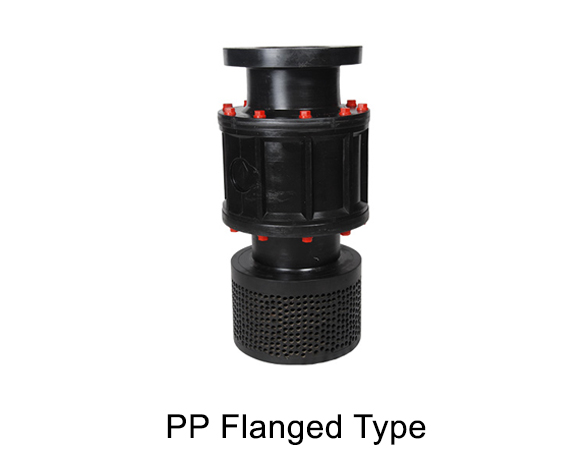

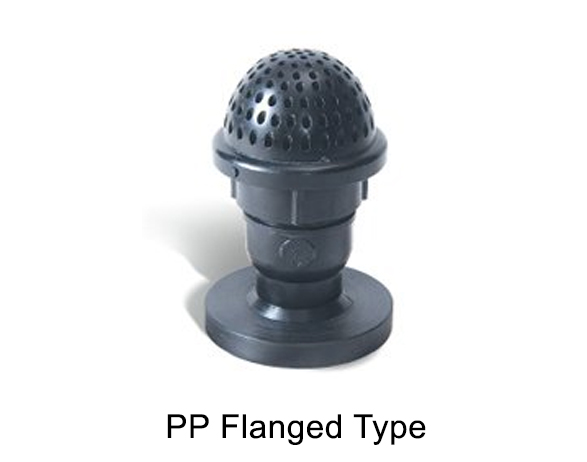

Foot Valve : Features
- Free floating ball allows maximum flow through valve.
- The only moving part is the ball, so maintenance is reduced/nil.
- The solid polypropylene/ PVDF ball seated on elastomer seatgives no chance for leakage.
- Ball fully supported by guide ribs for full flow & minimum turbulence.
- Available with various elastomer seats like Neoprene, Hyplon, EPDM, Viton for compatibility with different chemicals.
- Tight shut-off achieved at a minimum of 1 Meter Water Column.

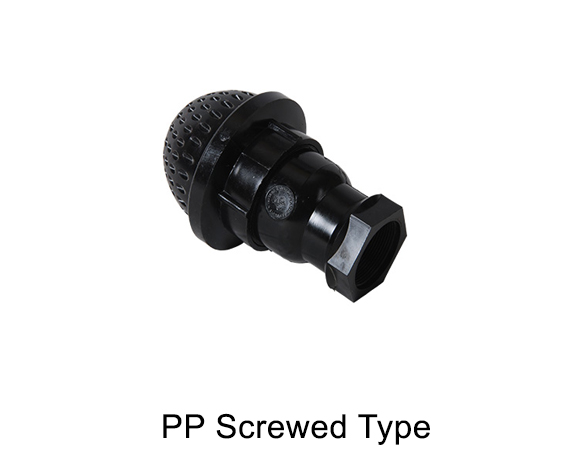

- Available in screwed end connections also.
Size Range :
115 mm NB to 150 mm NB.
Drilling :
As per all internationally accepted standards, such as BS, DIN, ASA 150 etc.
Hydrostatic Test :
At 10 kg/sq.cm.g for Body and Seat.
